| Type de paiement: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW |
| Quantité de commande minimum: | 30 Set/Sets |
| transport: | Ocean |
| Hafen: | Qingdao,Shanghai,Ningbo |

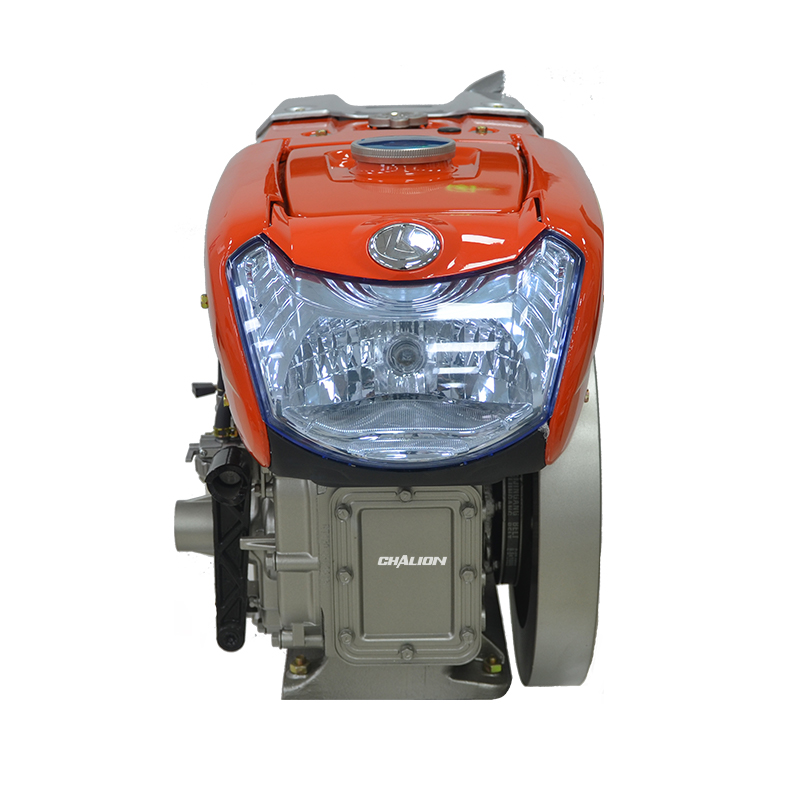

Caractéristiques principales du moteur diesel monocylindre :
1. aspect attrayant, grand rayon ultraviolet Protection, résistant au soleil.
2. En fonctionnement au ralenti, la rotation peut être inférieure à 600 tr / min.
3. Faible consommation de carburant.
4. Sans bruit.
|
Model |
Unit |
125DI |
140DI |
155DI |
|
Type |
Single Cylinder/Horizontal/Water Cooled/ 4-cycle |
|||
|
Bore x Stroke |
mm |
94x96 |
97x96 |
100x98 |
|
Displacement |
cc |
666 |
709 |
769 |
|
Maximum output |
Hp（kW）/rpm |
12.5（9.19）/2400 |
14（10.29）/2400 |
15.5（11.39）/2400 |
|
Continuous rated output |
Hp（kW）/rpm |
11（8.09）/2400 |
12.5（9.19）/2400 |
13.5（9.92）/2400 |
|
Fuel consumption |
g/Hp（kW）.h |
170（231） |
||
|
Rated speed |
rpm |
2400 |
||
|
Idle speed |
rpm |
≤600 |
||
|
Compression ratio |
18:01 |
|||
|
Maximum torque |
kgf.m/rpm |
4.7/1600 |
5.0/1600 |
5.5/1600 |
|
Valve clearance（cold engine） |
mm |
0.195-0.235 |
||
|
Cooling system |
Radiator |
|||
|
Governor system |
Flying hammer centrifugal speed type |
|||
|
Fuel Injection Pressure |
kgf/c㎡ |
190-210 |
||
|
Fuel delivery position |
17º-19º |
|||
|
Combustion system |
Direct injection system |
|||
|
Lubricating system |
Forced Lubricating with Trochoid Pump |
|||
|
Lubricating oil |
SAE 40（SAE 40 API CF） |
|||
|
Fuel |
（SAE No.2-D） |
|||
|
Fuel tank capacity |
L |
11 |
||
|
Cooling water capacity |
L |
2.1 |
||
|
Crankcase oil capacity |
L |
2.8 |
||
|
Starting system |
Speed Doubling Handle by Hand/Electric Start |
|||
|
Direction of Rotation |
Counterclockwise Facing Flywheel |
|||
|
Lamp |
12V 35W/35W |
|||
|
Measurement |
mm |
820x348x560 |
||
|
Net Weight |
kg |
114 |
114 |
116 |
|
Net Weight |
kg |
114 |
114 |
116 |
| Unités de vente | : | Set/Sets |
| Type de colis | : | Carton |
