| Type de paiement: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW |
| Quantité de commande minimum: | 30 Set/Sets |
| transport: | Ocean |
| Hafen: | Qingdao,Shanghai,Ningbo |

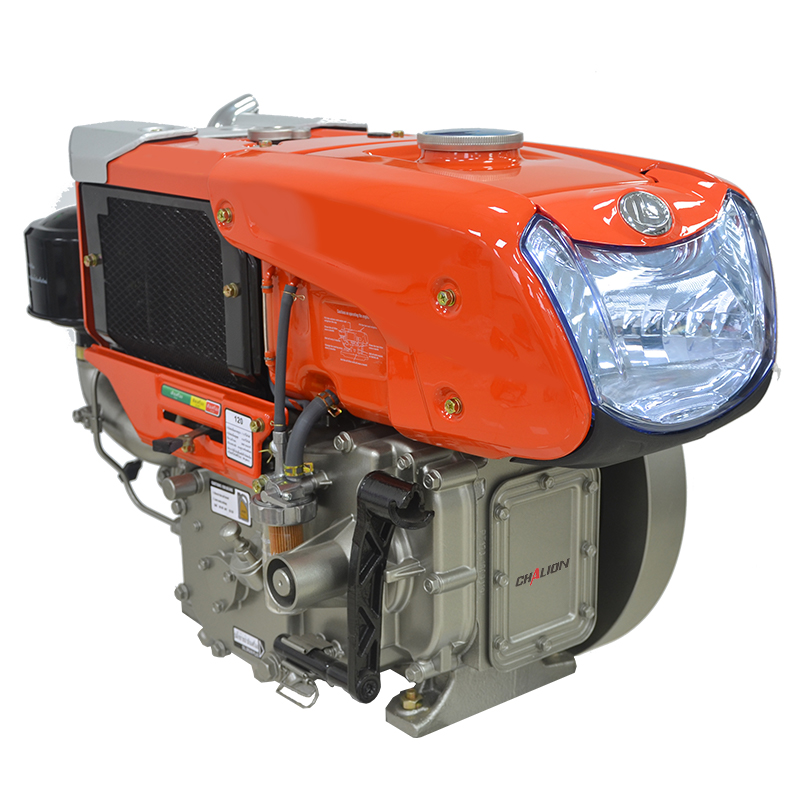

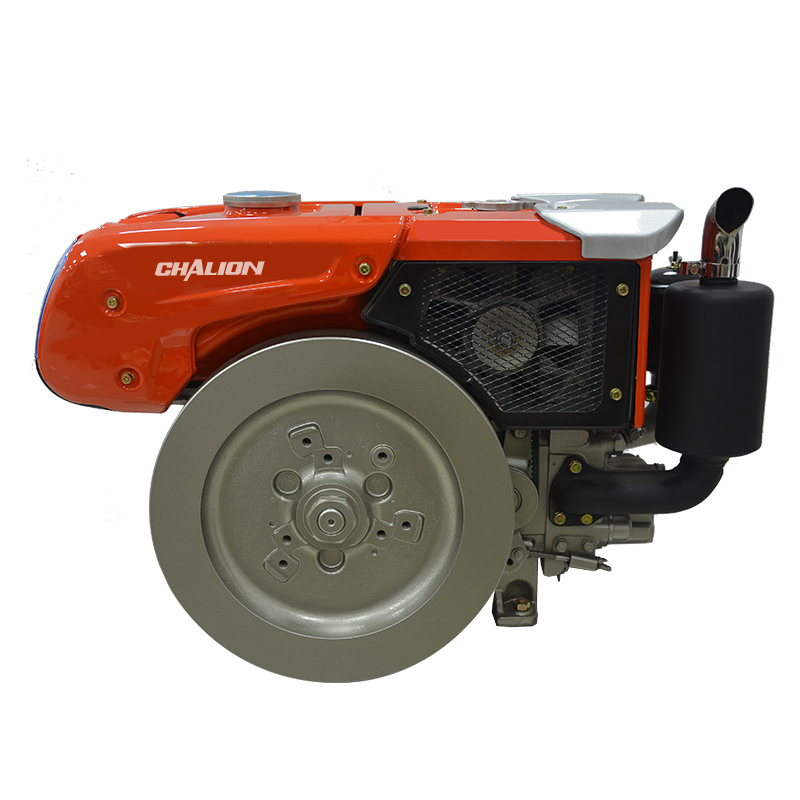

Caractéristiques principales du moteur diesel monocylindre :
1. aspect attrayant, grand rayon ultraviolet Protection, résistant au soleil.
2. En fonctionnement au ralenti, la rotation peut être inférieure à 600 tr / min.
3. Faible consommation de carburant.
4. Sans bruit.
|
Model |
Unit |
95 |
100 |
110 |
120 |
|
Type |
Single Cylinder/Horizontal/Water Cooled/ 4-cycle |
||||
|
Bore x Stroke |
mm |
86x90 |
88x90 |
92x90 |
94x90 |
|
Displacement |
cc |
522 |
547 |
598 |
624 |
|
Maximum output |
Hp（kW）/rpm |
9.5（6.99）/2400 |
10（7.35）/2400 |
11（8.09）/2400 |
12（8.82）/2400 |
|
Continuous rated output |
Hp（kW）/rpm |
8.5（6.25）/2400 |
9（6.62）/2400 |
9.5（6.99）/2400 |
10.5（7.72）/2400 |
|
Fuel consumption |
g/Hp（kW）.h |
190（258） |
|||
|
Rated speed |
rpm |
2400 |
|||
|
Idle speed |
rpm |
≤600 |
|||
|
Compression ratio |
21.5：1 |
21:01 |
|||
|
Valve clearance（cold engine） |
mm |
0.195-0.235 |
|||
|
Cooling system |
Radiator |
||||
|
Governor system |
Flying hammer centrifugal speed type |
||||
|
Fuel Injection Pressure |
kgf/c㎡ |
120-125 |
|||
|
Fuel delivery position |
19º-21º |
||||
|
Combustion system |
（TVCS）Three vortex combustion system |
||||
|
Lubricating system |
Forced Lubricating with Trochoid Pump |
||||
|
Lubricating oil |
SAE 40（SAE 40 API CF） |
||||
|
Fuel |
（SAE No.2-D） |
||||
|
Fuel tank capacity |
L |
11 |
|||
|
Cooling water capacity |
L |
2.1 |
|||
|
Crankcase oil capacity |
L |
2.8 |
|||
|
Starting system |
Speed Doubling Handle by Hand/Electric Start |
||||
|
Direction of Rotation |
Counterclockwise Facing Flywheel |
||||
|
Lamp |
12V 35W/35W |
||||
|
Measurement |
mm |
800x348x560 |
|||
|
Net Weight |
kg |
107 |
108 |
109 |
111 |
| Unités de vente | : | Set/Sets |
| Type de colis | : | Carton |
